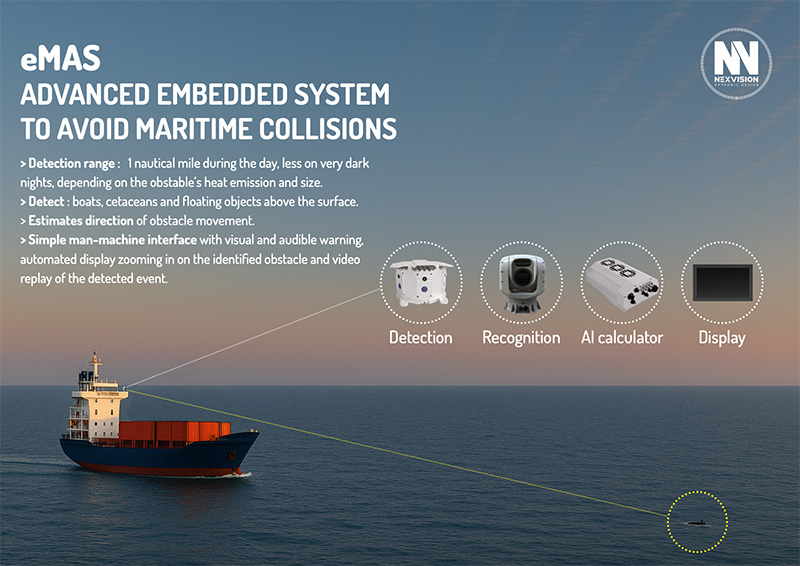

eMAS

Advanced embedded system
to avoid maritime collisions

Cetaceans, boats, floating objets

Maritime collisions are fairly frequent, can cause major damage to ships and even kill marine mammals

  • Too many whales killed each year by ship strikes.
  • Containers lost at sea float and can be a real danger for some ships.

ABOUT eMAS

  • Detection range : 1 nautical mile during the day, less on very dark nights, depending on the obstable’s heat emission and size.
  • Detect : boats, cetaceans and floating objects above the surface.
  • Estimates direction of obstacle movement.
  • Simple man-machine interface with visual and audible warning, automated display zooming in on the identified obstacle and video replay of the detected event.

Our advanced detection system combines pattern recognition and spectral signature analysis for precise multi-dimensional target identification.

DETECTION

IDENTIFICATION

AI CALCULATOR

VIEWER

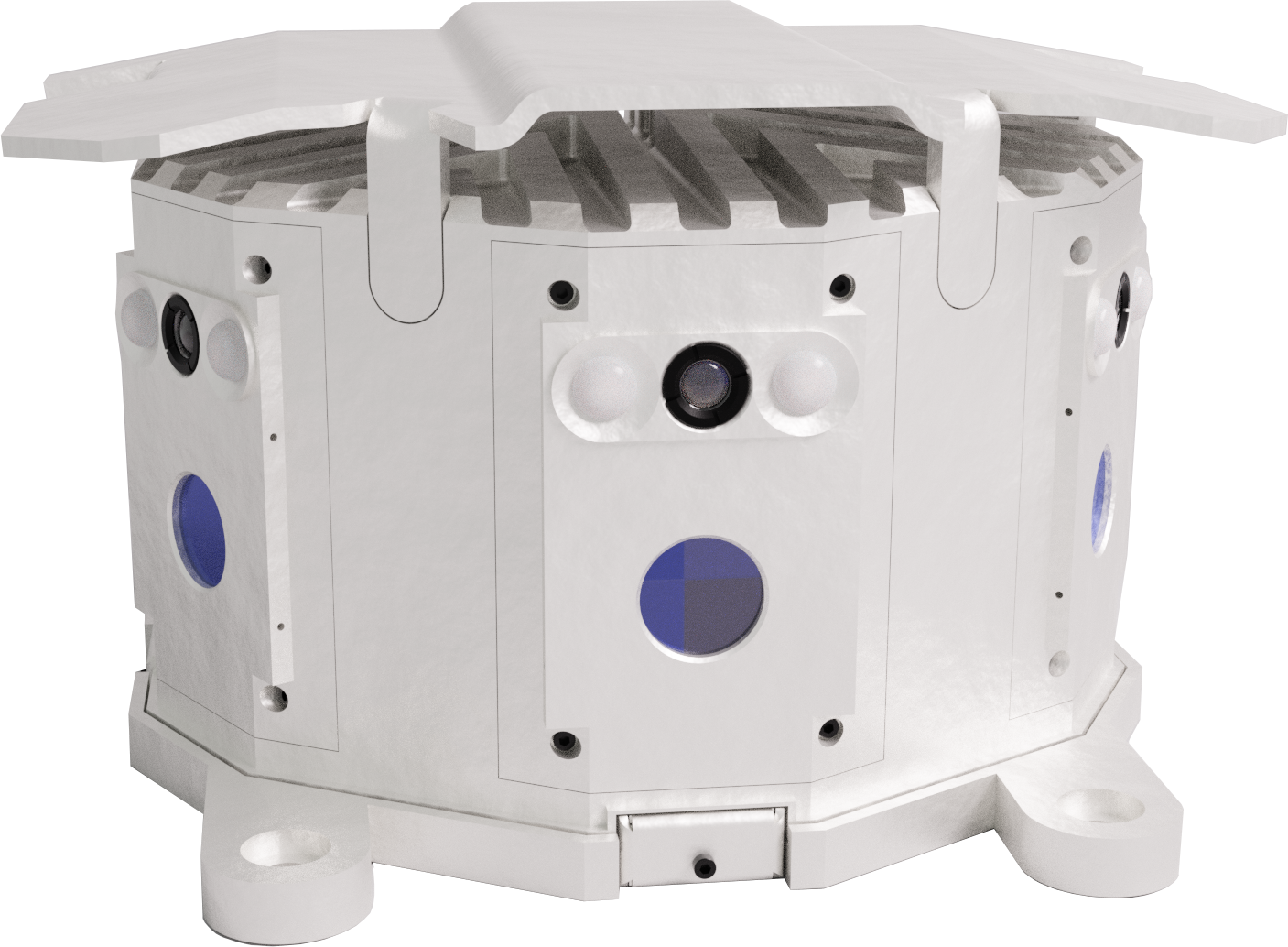

PANORAMIC CAMERA 180° HFoV

eVCAM-PANO180-DUAL

Detection, surveillance, situational awareness

  • Visible + thermal Infrared (LWIR)
  • Ultra high resolution (Vis 12Kx4K, LWIR 3840x1024px)

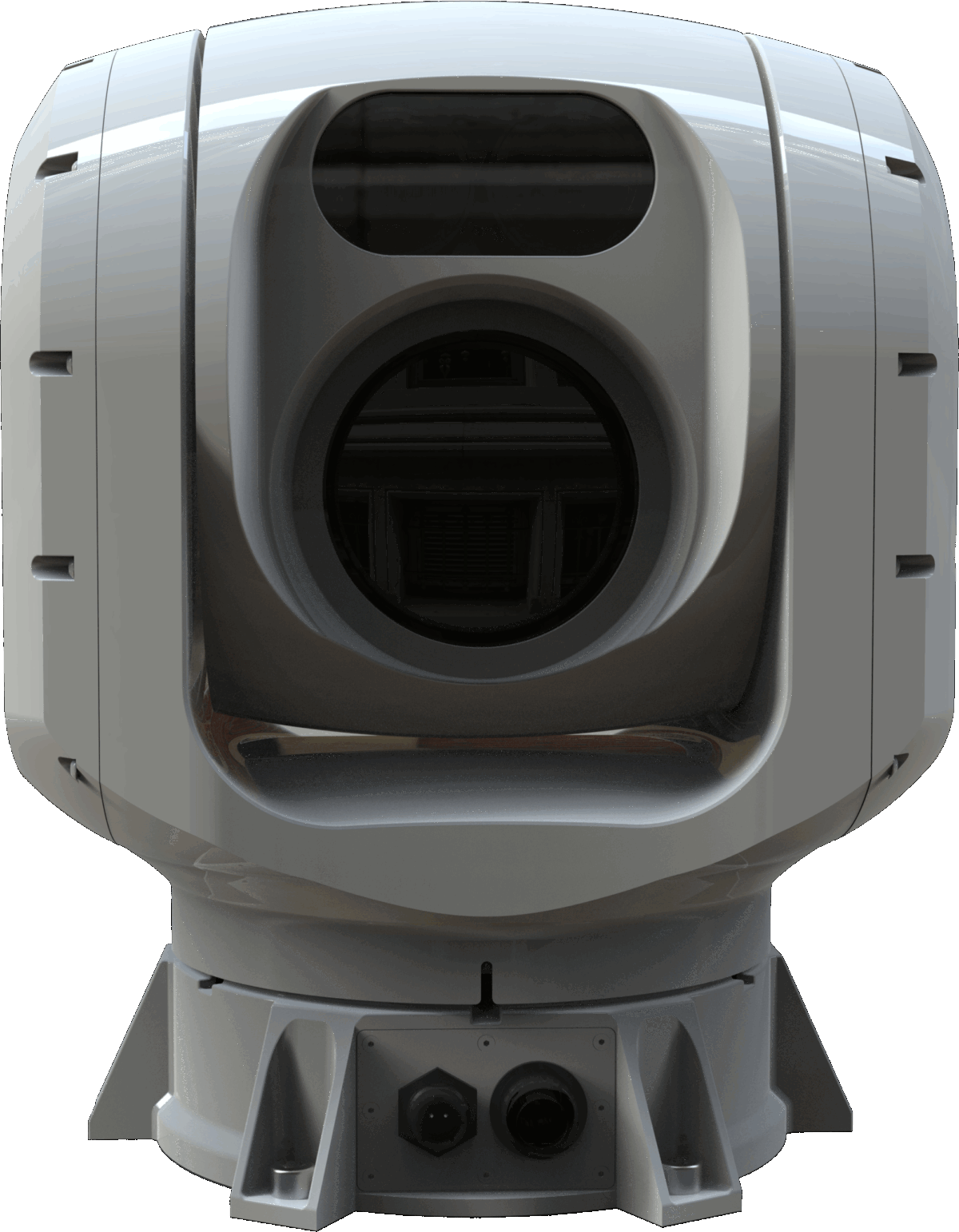

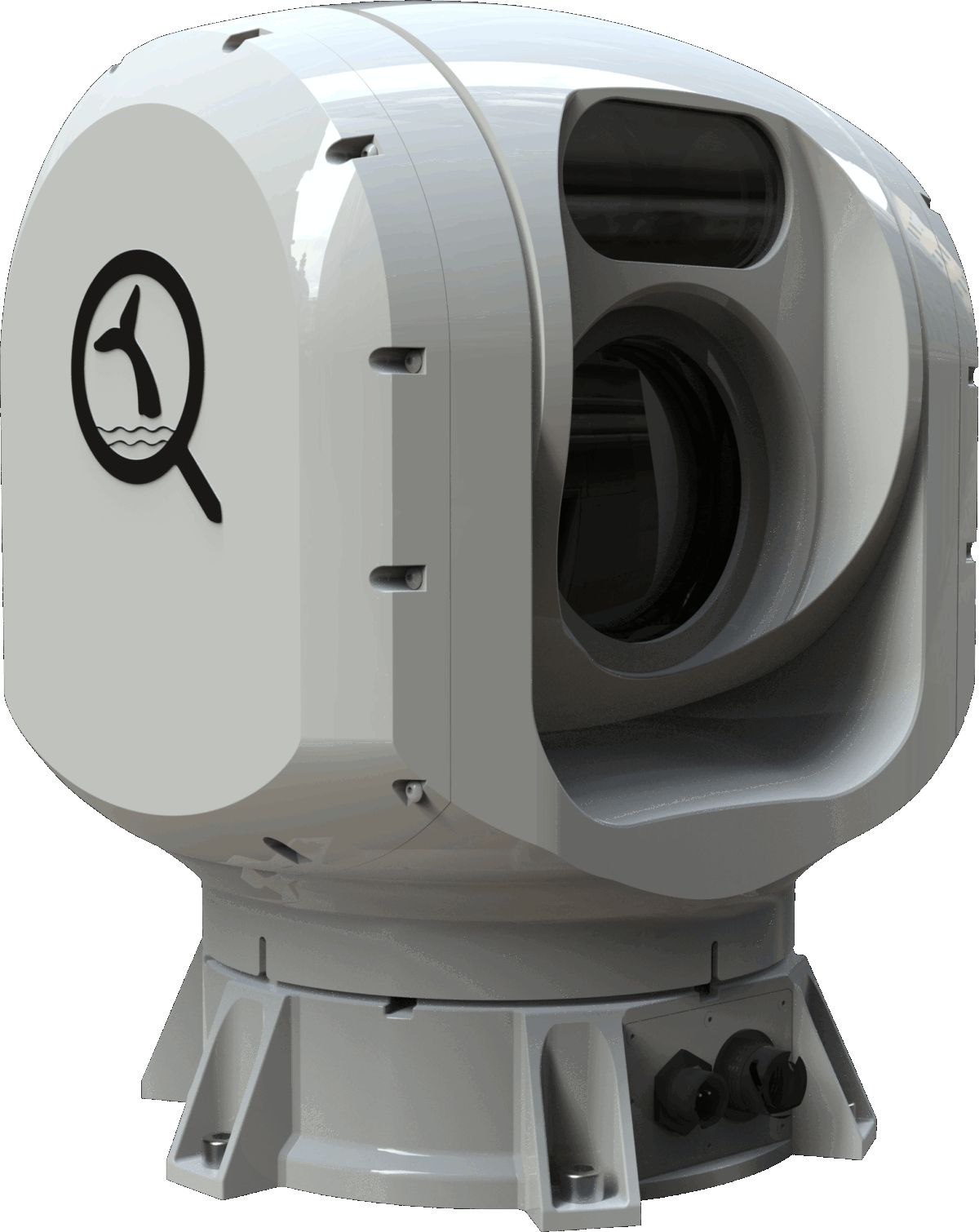

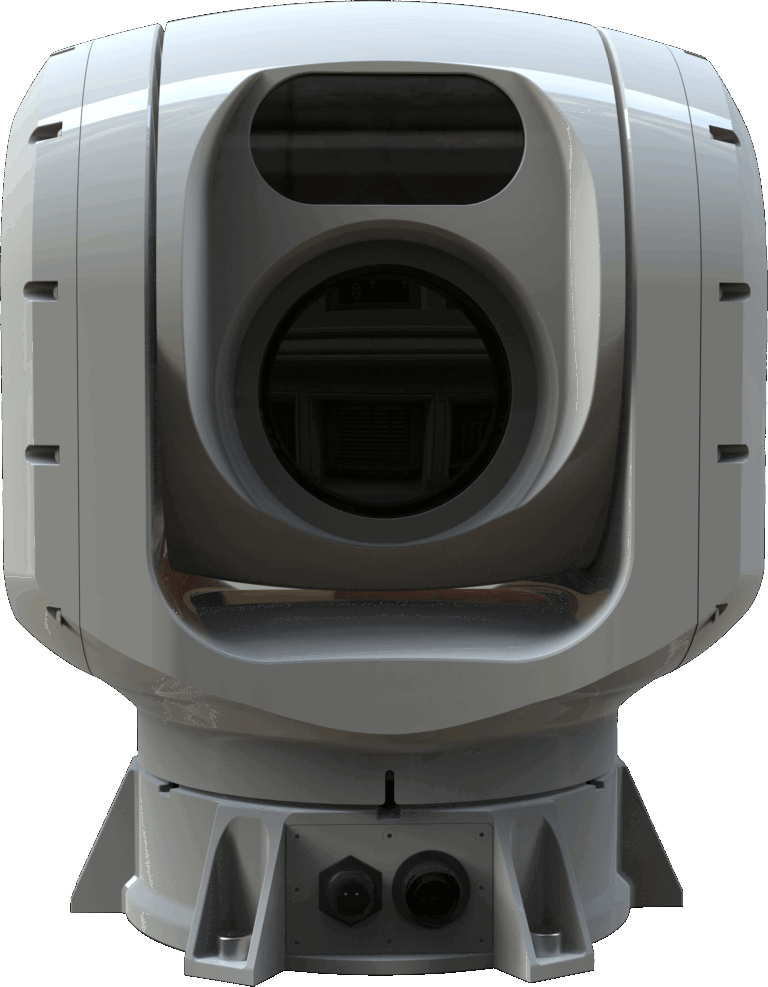

GyroStabilized Gimbal

eGSG

Long range identification

  • Color 4Kx4K zoom + night vision NATO level 3 VNIR 4Kx4K zoom + fixed focal 6° FoV thermal Infrared LWIR 1280
  • 12 inch
  • Options : LRF, illuminator, spotter…

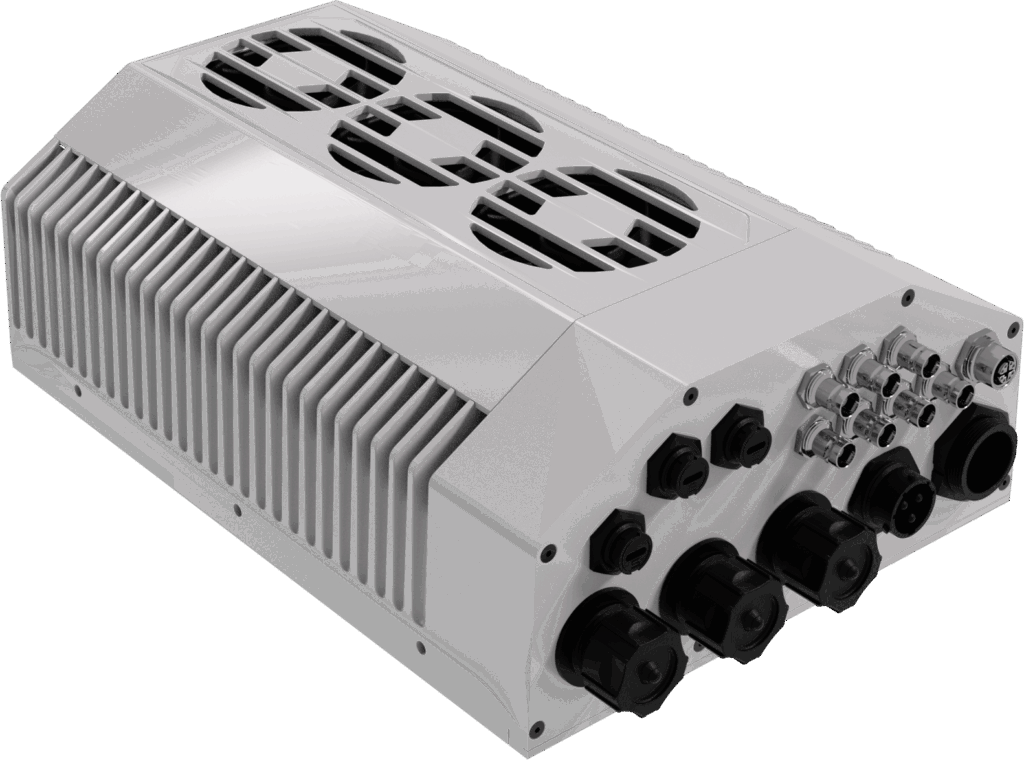

Vision Processing Unit

eVPU

AI calculator : detection, recognition and navigation trajectory advice based on object trajectory to avoid collision

  • A powerful embedded calculator for AI based situational awareness
  • Perfect for data fusion, image processing and analysis
  • 1000Top/s – 100Gb/s data stream – 100w

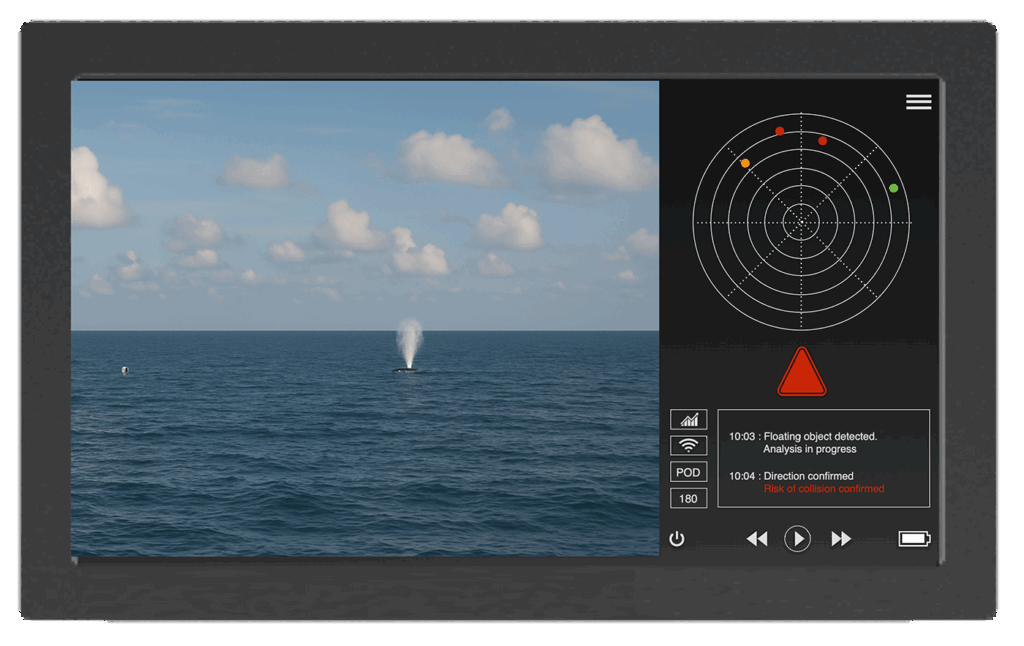

Rugged display

eHMI-VIEW-PAD

Viewer

A rugged multifunction display for viewing images or replaying sequences
