Embedded Vision based
Situational Awareness
for vehicles

Armoured vehicles, ground interceptors

INCREASING SITUATIONAL AWARENESS & AUTOMATION

For agile Intelligence-Surveillance-Recognition, Interception & Combat missions.

Environment awareness, threat detection and recognition, localisation

Situational awareness & threat recognition

All-terrain and all-weather driving assistance, including at night with the lights off

Driving in degraded conditions and adverse land path

Identify, assess and classify the level of threat, and make decisions using zoom pointing

Spotter, evaluation and classification of the level of threats, enhanced decision aids

Assisted fire control, vision-based turret control, semi-automatic firing, multiple engaged and self-tracking targets

Gunner assistance on target designation, tracking and engagement. Remote weapon station

Communication with another vehicle in combat, an autonomous drone (air/ground) or C4-ISR Command

Connectivity

360° active stealth: reduced signature thanks to simulation of the opposite thermal and visible view of the armouring

Stealthness

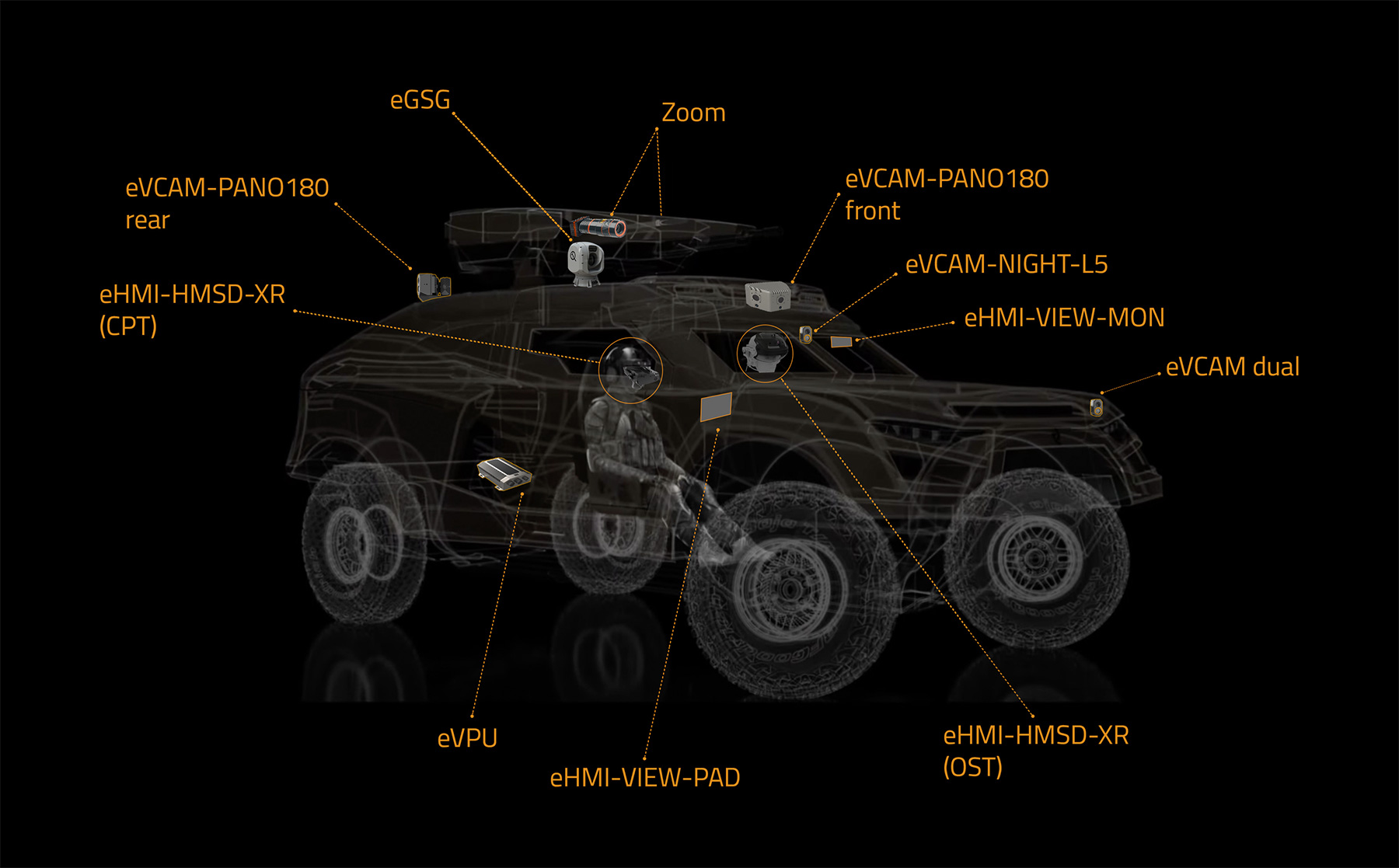

A global solution to fulfill the mission with
High Performance Computing + Sensors* + HMI

*Video cameras in Visible & Infrared night vision (VNIR, SWIR, thermal MWIR/LWIR) + Active 3D LiDaR + proxi RaDaR

Warning: Undefined array key "hotspot_offset_x" in /home/clients/e6d5cfa4a9edd4a21384936ef833d98e/sites/nexvision.dev/wp-content/plugins/elementor-pro/modules/hotspot/widgets/hotspot.php on line 1059

Warning: Trying to access array offset on value of type null in /home/clients/e6d5cfa4a9edd4a21384936ef833d98e/sites/nexvision.dev/wp-content/plugins/elementor-pro/modules/hotspot/widgets/hotspot.php on line 1059

Our advanced Situational Awareness system combines pattern recognition and spectral signature analysis for precise multi-dimensional target identification.

180° DETECTION

ZOOM IDENTIFICATION

VIS/THERMAL CAM

NIGHT L5 CAM

AI CALCULATOR

AR HELMET

VR HELMET

VIEWER

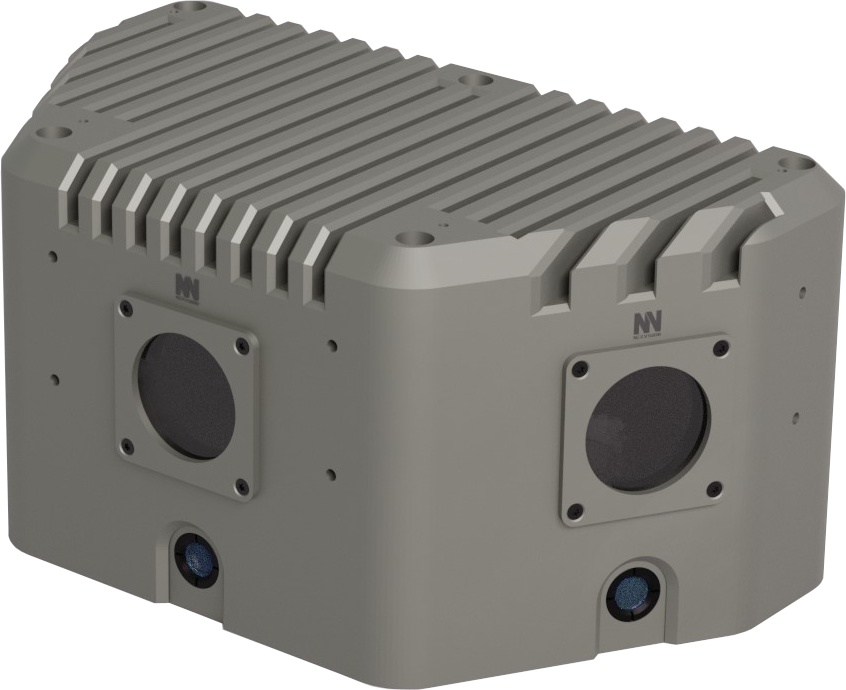

PANORAMIC CAMERA 180° HFoV

eVCAM-PANO180-DUAL

Detection, surveillance, situational awareness

Dual spectral band : thermal long wave infrared and color visible day light

Sensors :
- Visible : color, high dynamic and sensitive (NATO level 3 «quarter moon» night)
- Thermal LWIR : long wave infrared 8-13µm, bolometer, 12µm pitch
Ultra high resolution :
- Visible : 48Mpixels (12K x 4K)
- Thermal LWIR : 3,9Mpixels (3840×1024)
Framerate : 30fps
Field of View : 180° Horizontal x 60°(VIS) or 40°(LWIR) Vertical
Video Input/output : NVcoax (Power-over-Coaxial, video & cam control -> «eVPU»)
Mechanics :
- Without mounting support: 276L x 198W x 167H mm, Mount : 8 x M6 / Weight : 4kg
- With mounting support: 286L x 260W x 175H mm, Mount : 4 x M10/ Weight : 5.5kg

Play

GYROSTABILIZED GIMBAL

eGSG

Long range identification

Color 4Kx4K zoom + night vision NATO level 3 VNIR 4Kx4K zoom + fixed focal 6° FoV thermal Infrared LWIR 1280
12 inch
Options : LRF, illuminator, spotter…

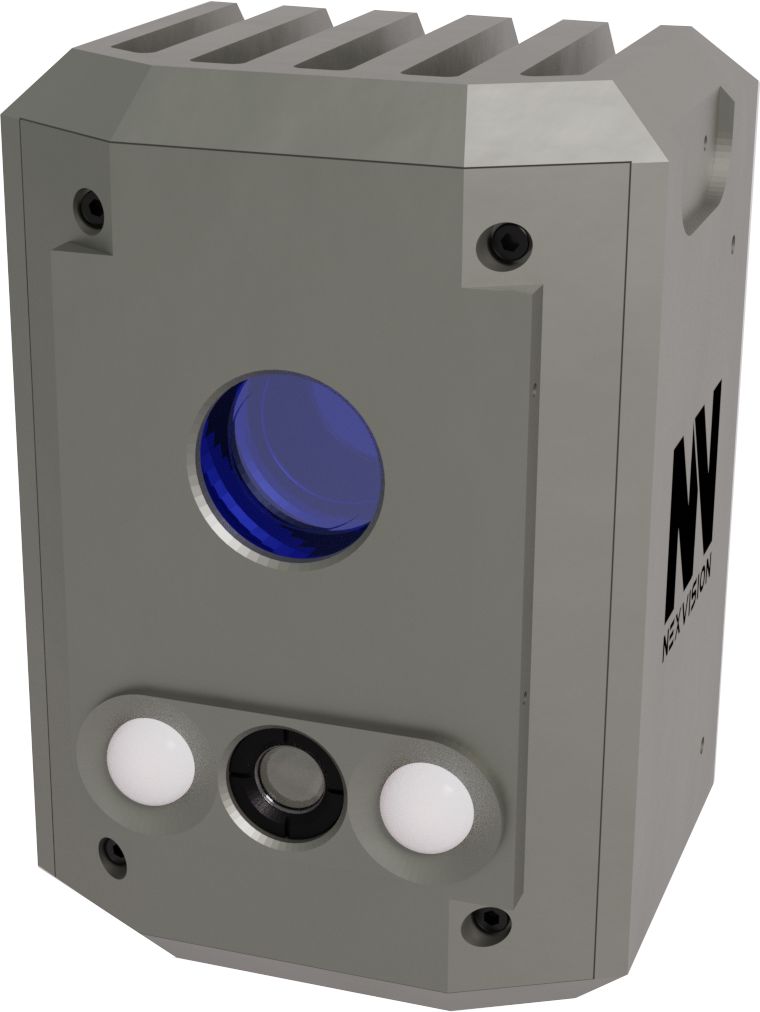

COLOR + THERMAL LWIR CAM

eVCAM DUAL

Detection, surveillance

Dual spectral band : thermal LWIR and color visible day light

Sensors :
- Visible : color, high dynamic and sensitive (NATO level 3 «quarter moon» night)
- Thermal LWIR : long wave infrared 8-13µm, bolometer, 12µm pitch
Resolutions :
- Visible : 16Mpixel (4K x 4K)
- Thermal LWIR : 0,3Mpixels (640 x 480)
Framerate : 30fps
Field of View : 60° Horizontal x 60°(VIS) or 40°(LWIR) Vertical
Video Input/output : NVcoax (Power-over-Coaxial, video and cam control -> «eVPU»)

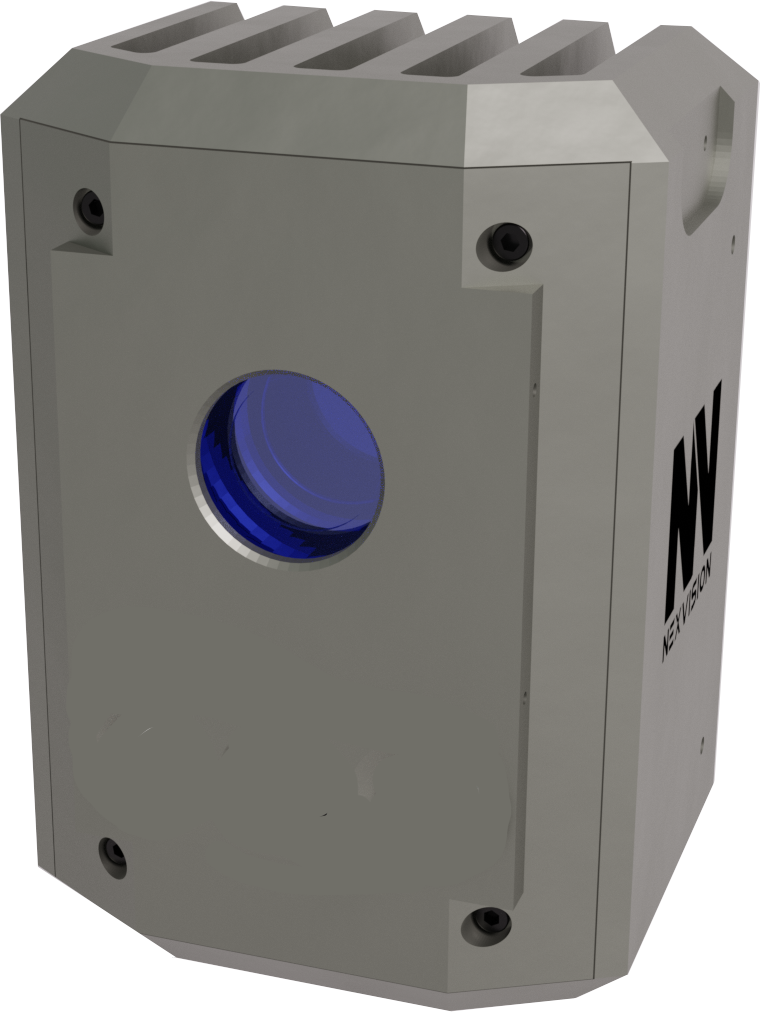

DARK NIGHT NATO LEVEL 5 CAM

eVCAM L5

Detection, surveillance

NATO level 5 « deep dark night » (<700µLux)

Resolution : 1.3Mpixels (1.3K x 1K)
High dynamic range (HDR)
Framerate : 30 or 60fps
Field of View : 60° Horizontal x 50° Vertical
Video output : NVcoax I/O (one cable fits all : Power-over-Coaxial, video and cam control -> «eVPU»)

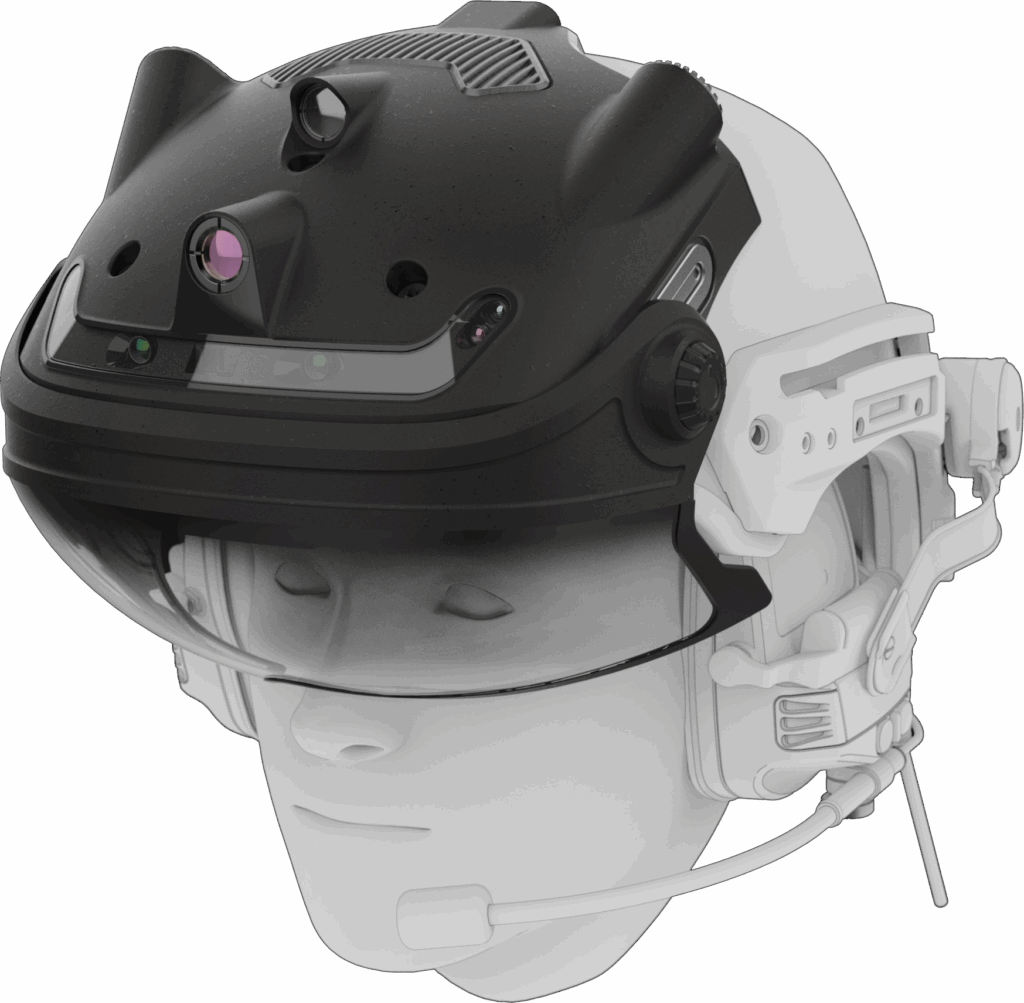

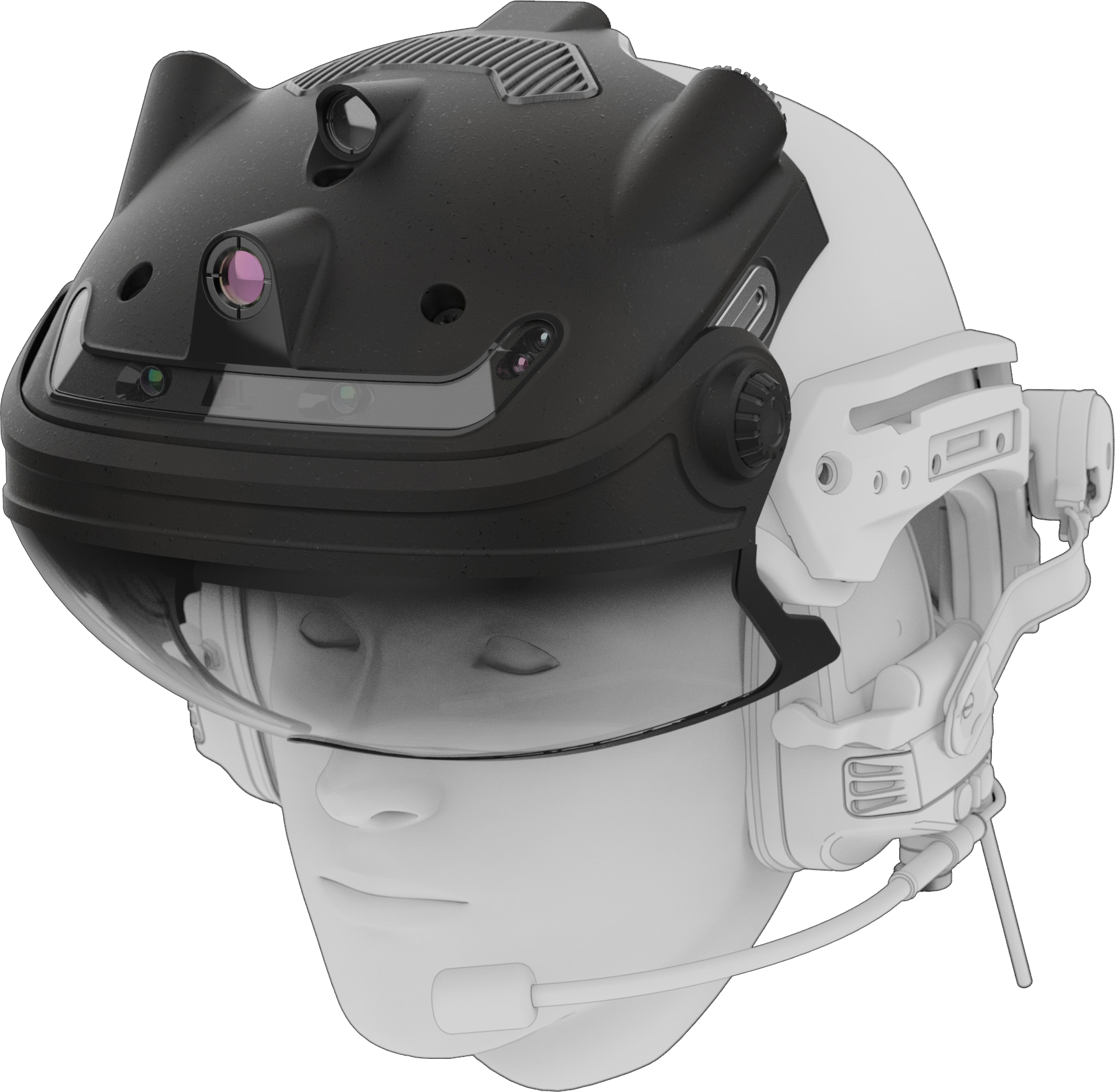

AR HELMET for Driver

eHMI-HMSD-XR-OST

HMSD (Helmet Mounted Sight & Display)

OST (Optical See Through) visor
Dark night vision (NATO level 5)
Wide (80°) & unobstructed field of view (minimum blind spot)
Thermal/visible fusion (from external camera)
Threat detection at 360°
Lightweight and better balanced than NVGs

> More information

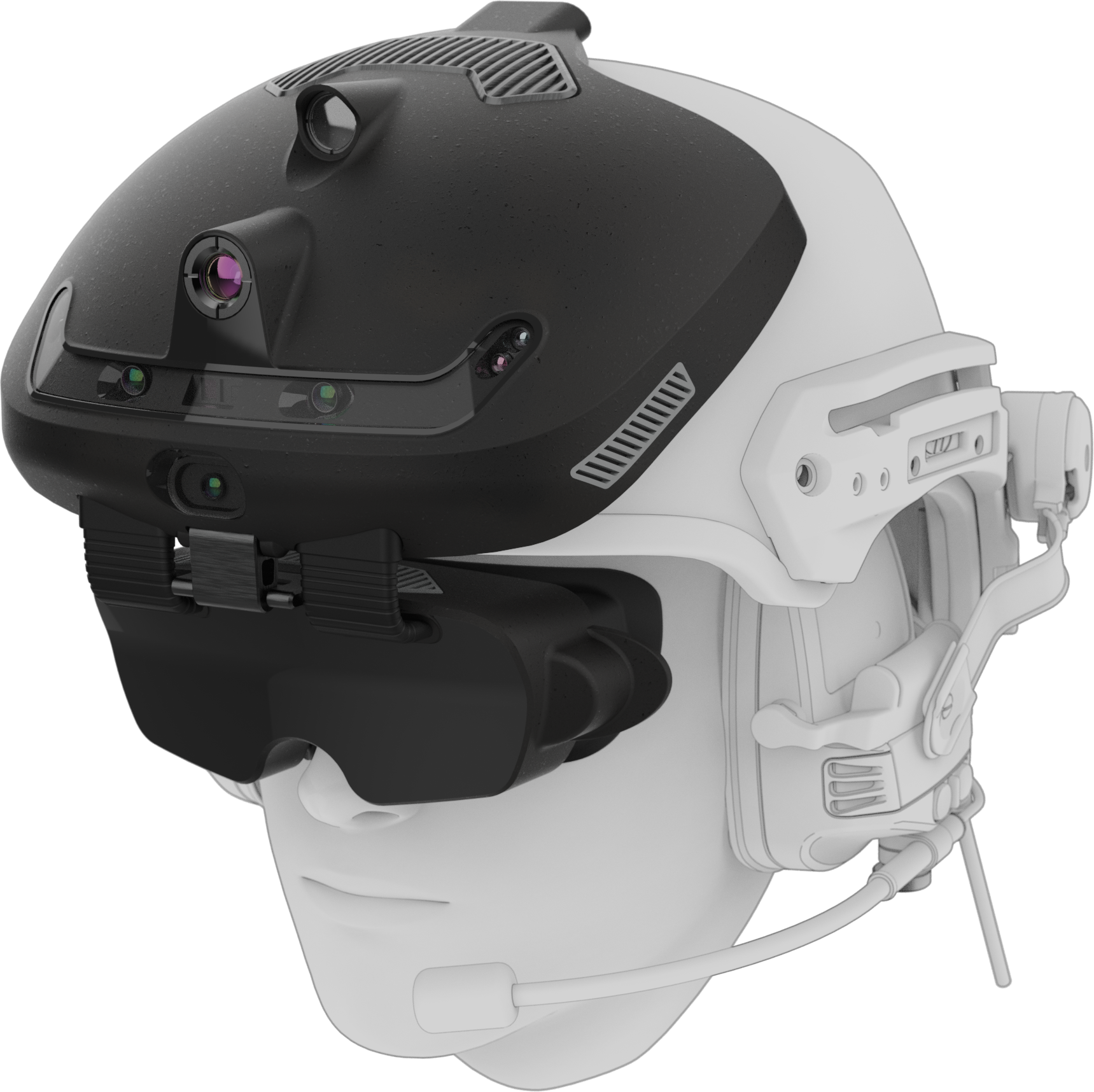

VR HELMET for Gunner

eHMI-HMSD-XR-CPT

HMSD (Helmet Mounted Sight & Display)

CPT (Camera Pass Through) displays
Mission, tactical information & mapping display for commander
Ultra High resolution (2.6K x 2.6K on each eye)
Wide (90°) field of view
Head & eye tracking assisted targeting for gunner
Thermal/visible fusion (from external camera)
Threat detection at 360°

Vision Processing Unit

eVPU

AI calculator : Perfect for data fusion, image processing and analysis (detection, tracking…)

A powerful embedded calculator for AI based situational awareness
Perfect for data fusion, image processing and analysis
1000Top/s – 100Gb/s data stream – 100w
